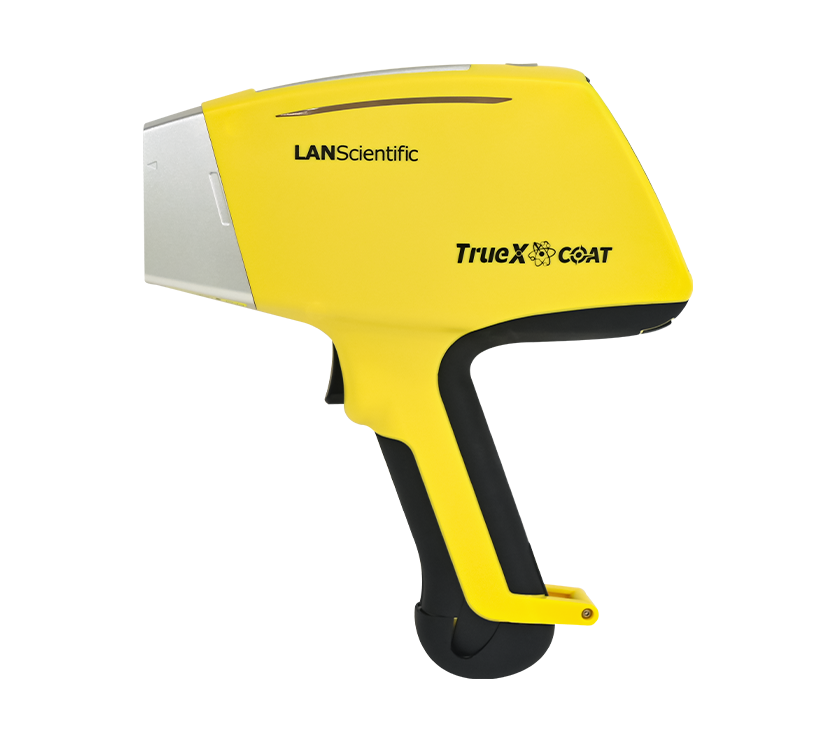

TrueX COAT coating thickness measuring instrument is a hand-held XRF instrument with excellent performance designed by LANScientific Co., LTD., relying on years of XRF technology research and development experience and integrating coating market demand. TrueX COAT is suitable for coating thickness measurement and material analysis with the advantages of non-destructive, reliable, high productivity and high flexibility. It can be used for qualitative analysis of elemental composition of samples, as well as thickness measurement of coatings and coating systems. Widely used in circuit board, semiconductor, electroplating, metal products, auto parts, sanitary ware, jewelry and other industries in the functional plating bath concentration analysis.
|
Hardware and building materials industry |
Jewelry and watches |
Precision electronics, 5G industry |
Automobile and decoration industries |
Plating bath liquid、Metal content in electroplating wastewater |
| Weight | 1.5KG |
| Size | 254mm ×79mm ×280mm（L×W×H） |
| Excitation source | Up to 50kV/200μA, voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
| Detection range | Mg—U |
| Detector | BOOST Si-Pin、SDD(optional) |
| Display system | 4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment |
| Data processing | Built-in 32GB storage USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Security | Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
| Power supply system | Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations |
