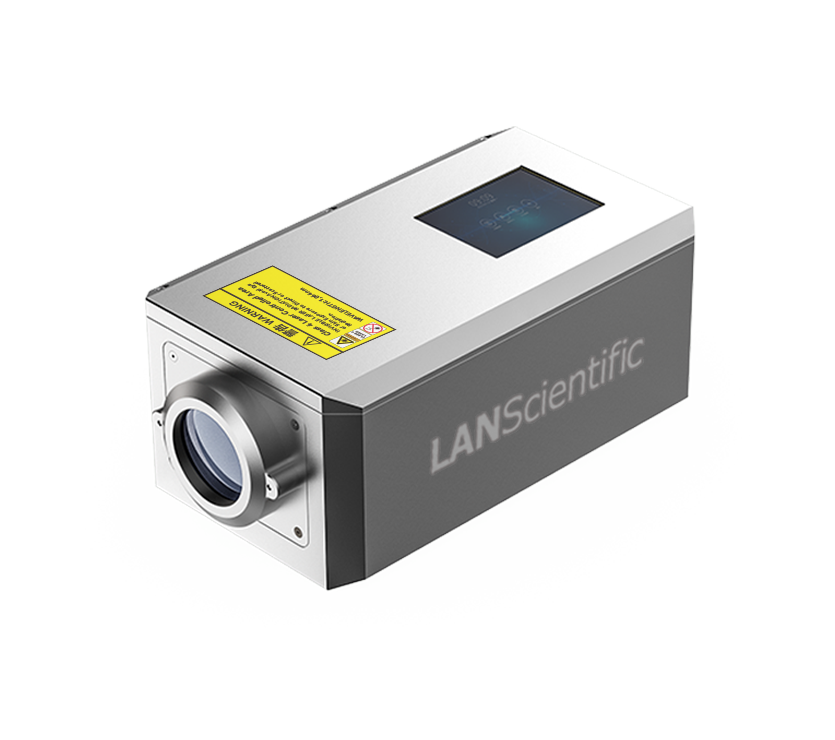

LIBS 980S Laser Composition Online Analyzer is a high-end industrial process analysis instrument designed for real-time monitoring and control of material composition. It will provide you with an efficient and accurate material analysis solution.
LIBS 980S uses laser induced breakdown spectroscopy (LIBS) technology, integrates a detection probe and a control cabinet, and has built-in automatic test distance control, dust and fume protection, automatic temperature adjustment, local/remote one-key operation and other functions. It can perform non-contact, non-destructive rapid component analysis on various solid, powder and other samples. It has the characteristics of fast analysis speed, high sensitivity, excellent repeatability, and ppm-level detection sensitivity. It has become a powerful assistant for metal, mineral and other industries to improve product quality, optimize production processes, and promote industrial automation.
|
|
|
 Steel smelting |
Coal/coal quality analysis |
| Principle | Laser Induced Breakdown Spectroscopy (LIBS) |
| Detectable samples | Solid, melt |
| Detectable Elements | Elements with a concentration greater than 0.01% (related to test conditions) |
| Detectable distance | 1m~5m |
| Laser wavelength | 1064nm |
| Laser safety level | Class 4 |
Display |
5.7 inch resistive screen |
| Memory card | 32G |
| Quantitative accuracy | Relative error <10% (depends on testing conditions) |
| Operation method | Local control, remote control |
| Power supply chassis | Size 530mm x 430 mm x 188mm, Weight17.6Kg |
| Industrial Probes | Size: 230mm x 417mm x 166mm，Weight:10kg |
| Industrial Power Supply | AC220V±10%，600W |
| Inspection auxiliary conditions | Cooling air (compressed air> 0.6MPa), cooling water (circulating water) |
| Working temperature | Standard Temperature 0~40℃, Recommended Temperature 5~35℃ |
| Maintenance | Optical component cleaning; laser water replacement |
