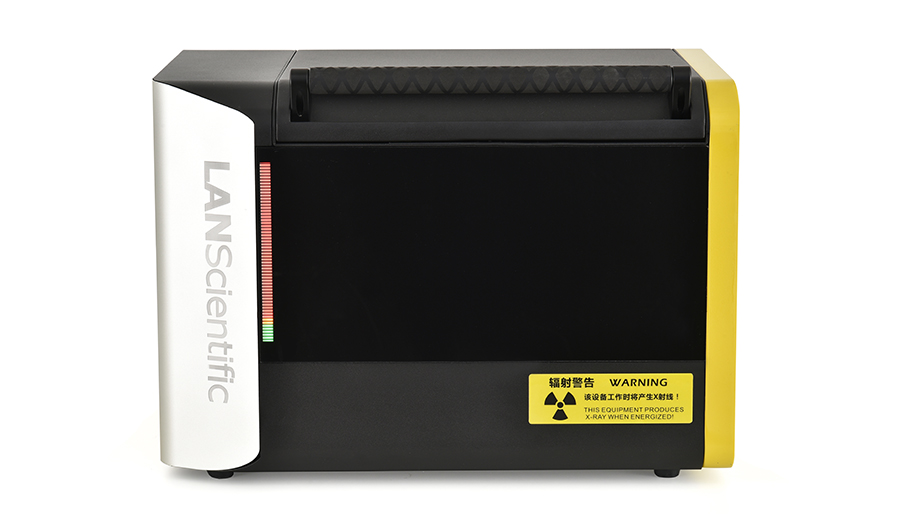

ScopeX G59 is a high-precision instrument specially designed for 99999 gold showroom and ultra-high purity gold analysis. As one of the flagship products of LANScientific, ScopeX G59 is equipped with large area detector with ultra-sensitive analysis function. Collimators of different sizes enables analysis of very small samples. Large sample chamber can meet the analysis requirement of different size samples.
Adopting brand new vertical optical path system, ScopeX G59 can carry out rapid and non-destructive analysis of not only gold (Au) content, but also very small impurity silver (Ag) and copper (Cu) with limit of detection(LOD)≤ 10ppm. It meets the analysis requirements on gold from 99.99%(9999 gold) to 99.999%(99999 gold). Ultra-high precision analysis within 0.001% (10ppm impurity) makes it the ideal choice for 99999Au showroom and ultra-high purity gold analysis.
Precious metal XRF analyzer is a key tool in jewelry factory to conduct accurate precious metal composition analysis on incoming and recycling material. For incoming materials, it verifies whether materials meet certain production standards. |
Precious metal analyzer can monitor metal components of raw materials and semi-finished products at all stages of jewelry manufacturing to ensure the accuracy of alloy ratio. For instance, to quickly analyze the purity of metals such as gold, silver, and platinum during smelting process, helping adjust the smelting parameters to reach settled alloy ratio. |
Precious metal analyzer can be used to test precious metal composition during quality control and finished product inspection process, in order to insure the fineness and purity satisfy certain standards. For example, to analyze 18K, 24K, platinum and other jewelries precisely, ensuring the consistency of product labels and actual compositions. |
Precious metal analyzer is mainly used for jewelry quality assessment and trade-in services in gold shops and jewelry showrooms. QA: To ensure gold, silver, platinum and other jewelries in sale meet standard purity. Trade-in service: The precious metal analyzer can quickly and accurately assess the purity and value of old jewelry when customers want to exchange for new. Recycling service: For old gold jewelry or other precious metal items that customers want to sell, precious metal analyzer can provide instant purity analysis to help evaluate the recycling value fairly. |
Other applications 99.99%(9999 gold) and99.999%(99999 gold) are not only favored in jewelry industry, they also play an important role in key industries such as electronics, semiconductors, aerospace and scientific research. Precious metal XRF analyzer, as an accurate tool, is widely used to ensure the composition meets strict industry standards of 9999 gold or 99999 gold. |
| Type | Benchtop |
| Weight | 46KG |
| Size | 570mm×400mm×400mm（L×W×H） |
| Sample chamber size | 365mm×300mm×78mm（L×W×H） |
| Detection range | Al-U |
| Language | Multi languages including Chinese, English |
| Detector | Ultra-large area SDD detector with bringing excellent counting rate and energy resolution |
| Optical structure | Vertical |
| Tube window | Beryllium window |
| Collimator | 0.5mm/1.0mm/2.0mm/3.0mm are switchable for users to flexibly choose according to analysis requirements and sample characteristics, ensuring the best XRF performance. |
| Filter | Automatic switchable multi-filter can significantly improve the quality and efficiency of analysis, better adapting to different analysis scenarios, providing users with more accurate and reliable results. |
| Accuracy | ±0.001%（99999 gold） |
| Computer parameter | I5 quad core |
| Data printing | Bluetooth printer |
| Algorithm | ScopeX G59 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | Included |
| Camera | 5 megapixel HD CMOS color camera |
