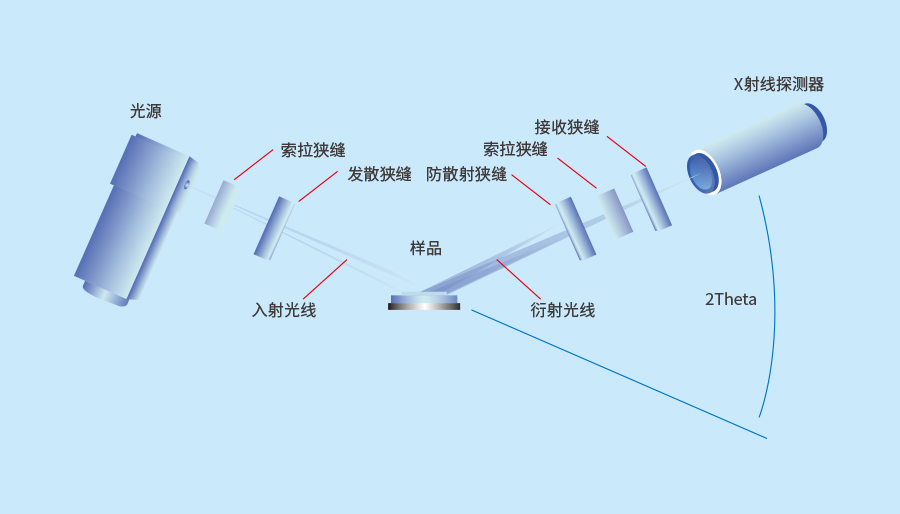

X-Ray diffraction uses the diffraction phenomenon of X-Ray in the crystal to obtain the X-Ray signal characteristics after diffraction, and gets the diffraction pattern after processing. It is a research method to obtain information such as the composition of the material, the structure or morphology of the atoms or molecules inside the material by X-Ray diffraction and analysis of its diffraction pattern.
FRINGE C1600 is a multi-function X-Ray diffraction analyzer developed by the company, which is ideal for analytical applications in many fields such as materials research, biomedicine, minerals, plastics, and semiconductors. FRINGE C1600 can quickly perform the following analysis on samples in powder, bulk or film form:
Phase qualitative and quantitative
Determination of crystal structure and orientation
Crystallinity measurement
Grain sizing
Measurement of macroscopic and microscopic stresses
Measurement of lattice parameters
......
| Goniometer | θ-2θ linkage vertical goniometer, diffractive circle radius 150mm |
| Angle measuring range of Angle meter | -3° - +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sola slit | The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| X-Ray Tube | Cermet X-ray tube, with maximum power of 2.2KW, focus: 1mm x 10 mm, default configuration cu target, optional Co, Cr, Mo target |
| High voltage generator power | 1200W, maximum tube voltage 40KV, maximum tube current 30mA. |
| Size | 580mm x 450mm x 680mm（L×W×H） |
| Weight | About 120 KG (depending on the actual configuration) |
| Power supply | 220V±10V, 50Hz, the whole power is 2000W |
| Heat dissipation | FRINGEC1600uses an external water circulation cooling system to cool the surging power powerfully |
| Detector | DPPC detector |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The FRINGEC1600has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment |
| Cloud service capabilities | FRINGEC1600uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGEC1600. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software |
