The INSIGHT coating analyzer uses a micro-focusing X-Ray tube to collect most of the rays from the X-Ray source and focus them into a micro-beam spot, which is irradiated at the sample position, so as to obtain good spatial resolution and strong fluorescence signal. The instrument collects, processes and evaluates the fluorescent signal generated after the sample is irradiated through the energy spectrum probe and the subsequent data processor to obtain the composition information of the sample. It enables fast measurement and precise analysis for more complex applications and is ideal for elemental analysis of inhomogeneous or irregularly shaped unknown samples as well as microscopic objects.
INSIGHT Coating Analyzer is a 'up-bottom' coating analyzer, which has the characteristics of compact appearance, space saving, easy operation, fast analysis, and accurate detection. It is widely used for elemental analysis and thickness detection of samples with conventional and complex coating structures, especially for samples with uneven, irregular, and even tiny shapes. Besides, It ensures customers get reliable, repeatable results for hundreds of applications including: jewelry, small parts, connector plating, general circuit boards, and more.
PCB surface treatment process, common are hot air leveling, organic coating OSP, electroless nickel plating/immersion gold, immersion silver, immersion tin and electroplating nickel gold and other processes. INSIGHT provides fast, efficient, non-destructive and accurate analysis of PCB coating thickness and composition of different shapes. |
The electroplating process can protect the metal surface of jewelry and make the surface of metal jewelry more beautiful. Jewelry electroplating standards are different in different countries. At present, the standard implemented in my country is "General Technical Conditions for Precious Metal Coated Ornaments - Electroplating QB T 4188-2011". In order to meet market quality requirements and ensure compliance with industry standards. INSIGHT is suitable for single-layer and multi-layer thickness and composition inspection of jewelry of different shapes. |

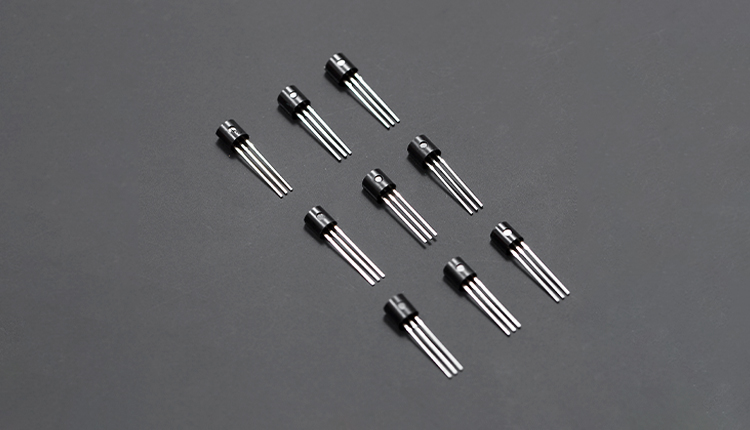

The development of coating technology and electronic components is synergistic with each other. With the accelerated pace of social development, the performance requirements of electronic components are gradually increasing, and coating technology is also particularly important. In order to ensure the stability and reliability of electronic products, the detection and screening of the coating of electronic components is an important part. Common electronic component coatings include tin-silver (Sn-Ag) coating, tin-bismuth (Sn-Bi) coating, tin-copper (Sn-Cu) coating, pre-plated nickel-palladium-gold (Ni-Pd-Au) and so on. |
With the rapid development of science and technology, parts in various industries tend to be miniaturized. As an important surface treatment method for small parts, coating process is divided into rack plating, barrel plating, continuous plating and brush plating. |
| The characteristics of | Top-down measurement structure, XYZ measurement platform, MUTI-FP multilayer algorithm |
| Scope of element | Na(11)—Fm(100) |
| Analysis of the layer number of | 5 layers (4 layers + substrate) each layer can analyze 10 elements, composition analysis can analyze up to 25 elements |
| X-ray tube | 50 W (50 kV, 1mA) micro-focused tungsten palladium ray tube (target material is optional) |
| The detector | Si-PIN large area detector |
| Collimator | φ0.05-φ1 is optional. Multi-standard is optional |
| The camera | High resolution CMOS color camera, 5 megapixels |
| Manual sample XY platform | Moving range：100 x 150 mm |
| Programmable XY platform | (Optional) |
| Z-axis range of movement | 150 mm |
| Sample bin size | 564×540×150 mm (L x W x H) |
| Overall dimensions | 664×761×757 mm (L x W x H) |
| weight | 120KG |
| The power supply | AC 220V±5V 50Hz(The configuration varies slightly by region) |
| Rated power | 150W |
